Diagrams

Clew draws diagrams from text in two quite different ways. Mermaid diagrams — flowcharts, sequence diagrams, and the rest of mermaid's catalogue — render instantly in the preview and follow the app's light and dark themes. TikZ and MetaPost figures go further: they are typeset by a real LaTeX — pdfTeX, LuaTeX, MetaPost and dvisvgm, compiled to WebAssembly and shipped with Clew — running in the preview itself. Publication-grade figures, living as plain text in a Markdown file, on any machine: nothing to install, and nothing written into your vault. The same engines typeset whole LaTeX snippets and plain TeX too, and every block can show its source instead of — or beside — its result. Typeset figures sit on the page like ink: black-on-transparent in the light theme, inverted to white-on-transparent in the dark one.

Mermaid

The quickest way to a diagram is the fence Obsidian users already know:

```mermaid
graph LR
	A[Welcome] --> B[Clew Design]
	A --> C[Dialect Demo]
	C --> B
	B --> D{{Graph view}}
```

Reading mode renders it client-side with a bundled copy of mermaid — no network involved. Anything mermaid can draw is available: flowcharts, sequence diagrams, state and class diagrams, Gantt charts, pie charts, and the rest of its steadily growing catalogue. A sequence diagram, for instance:

```mermaid
sequenceDiagram
	Editor->>Engine: note changed
	Engine->>Preview: rendered HTML
	Preview->>Preview: morphdom patch
```

The ```mermaid fence is not native jmarkdown — it is an Obsidian-compatibility extension Clew adds to the engine, precisely so vaults written in Obsidian render their diagrams unchanged. The engine's own spellings work too, as a container directive or a block environment:

:::mermaid
graph TD
	idea --> note --> essay
:::

@begin(mermaid)
graph TD
	idea --> note --> essay
@end(mermaid)

In the preview all three spellings look identical. The difference appears at export time: the native forms can be rasterized for LaTeX and PDF output through the mermaid CLI (mmdc), while the compatibility fence renders in HTML only and exports to LaTeX as nothing. If you expect a note to become a PDF, prefer the native forms. (When mmdc is not installed, a LaTeX export skips the diagram with a one-line hint rather than failing.)

Mermaid diagrams are theme-aware: Clew initializes mermaid with a theme matching the app — its default light theme in light mode, its dark theme in dark mode — and when you switch themes, every diagram on the page is re-rendered from its source so the colors follow. You never end up with a light-background diagram floating on a dark page.

TikZ

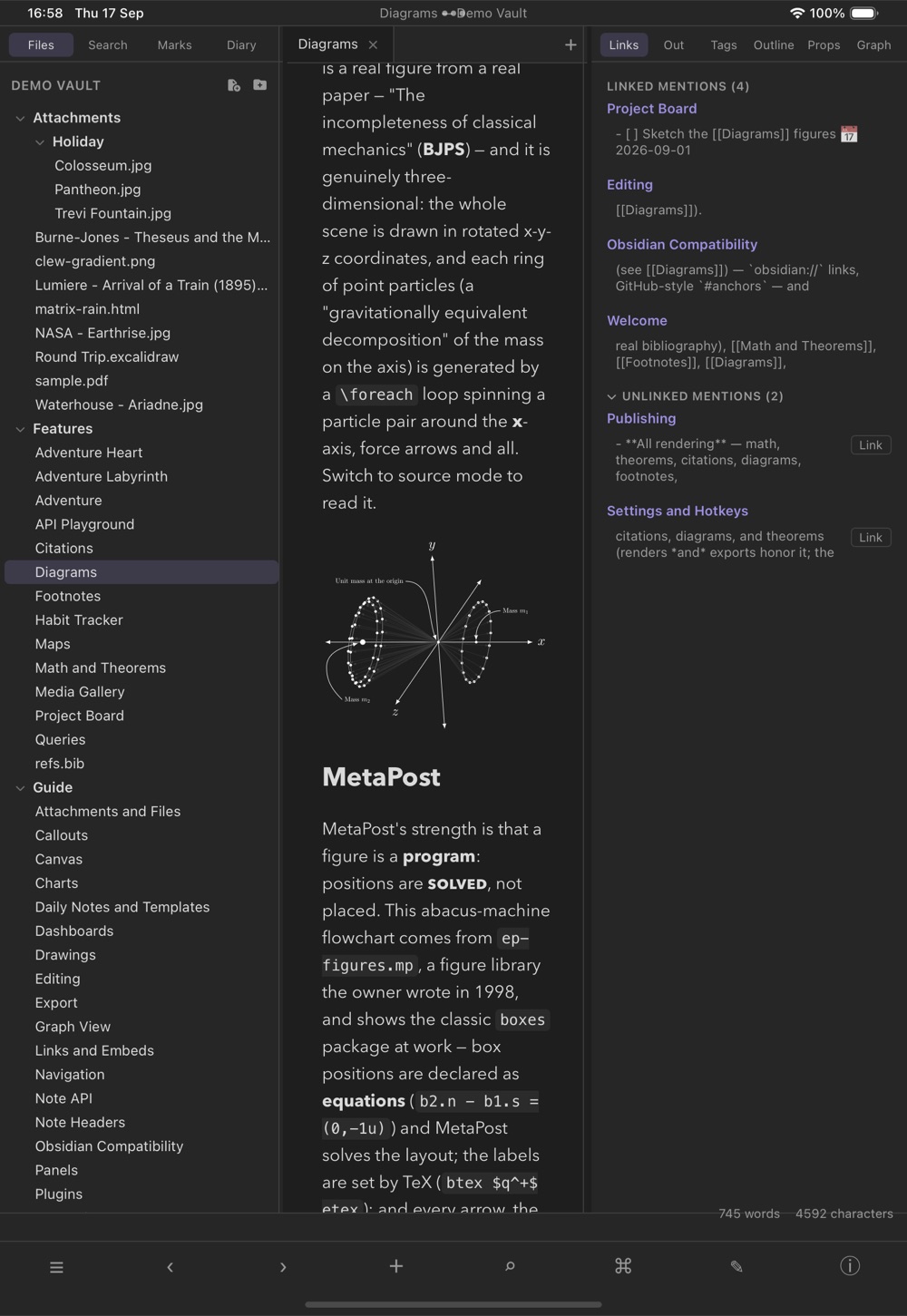

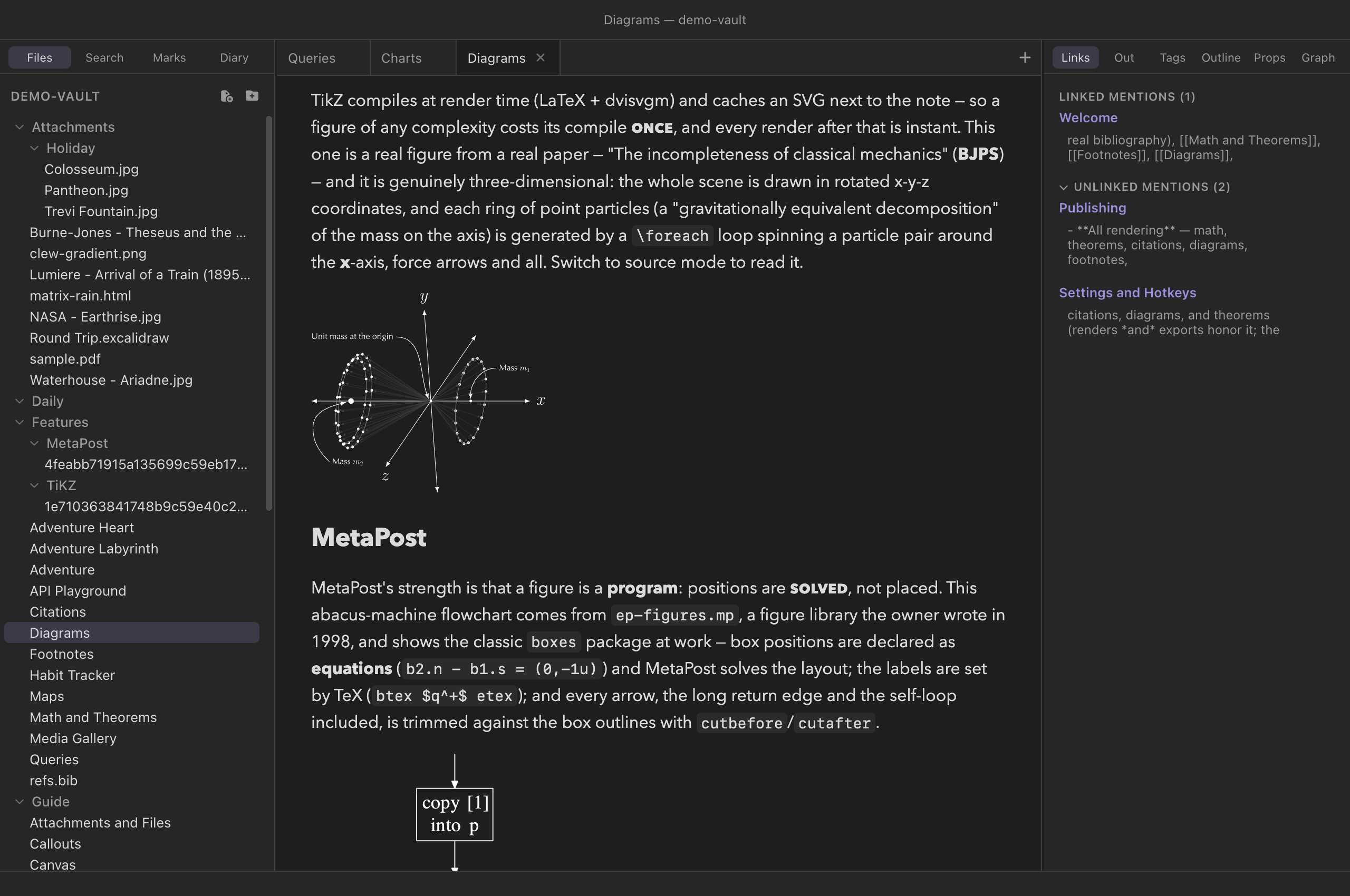

TikZ is LaTeX's drawing language — the standard for figures in mathematical and scientific publishing. A TikZ figure in a note is written as a block environment holding an ordinary tikzpicture:

@begin(TiKZ)
\begin{tikzpicture}[scale=1.1]
\draw[thick,->] (0,0) -- (3,0) node[right] {$x$};
\draw[thick,->] (0,0) -- (0,2.2) node[above] {$y$};
\draw[blue,very thick,domain=0:2.8,smooth] plot (\x, {0.25*\x*\x});
\node[blue] at (2.2,1.9) {$y = x^2/4$};
\end{tikzpicture}
@end(TiKZ)

Note the capitalization: the environment is spelled TiKZ. The container-directive spelling :::TiKZ … ::: is equivalent. When the note renders, Clew does what a LaTeX author would do by hand — wraps the picture in a minimal standalone document, typesets it, and converts the result to a vector SVG — except that all of it happens in the preview, in WebAssembly. Nothing is approximated: the engines are pdfTeX and LuaTeX themselves, the converter is dvisvgm itself, and the figure in your note is the figure LaTeX draws, TeX fonts, math labels and all. Shadings and gradients survive as SVG gradients, patterns as patterns; a figure that asks for a graph-drawing layout gets LuaTeX, which is fetched only when something needs it.

One TikZ fact is worth knowing because it looks like a rendering bug: the classic arrow tips — >=latex, >=stealth and their primed forms — are not counted in TikZ's bounding box, so an arrowhead at the edge of a picture sits in the standalone border, exactly as it does in a PDF. The default 2pt has room for them at the usual line widths; an ultra thick line or an enlarged tip may want border=4pt. The arrows.meta tips (Latex, Stealth, as in the fence example below) are counted, and never need the room.

The Obsidian fence

An Obsidian vault written against the TikZJax plugin keeps its figures in ```tikz fences, and Clew renders those too — including bodies in that dialect, which carry their own \usepackage lines and \begin{document} instead of a \documentclass. A fence body is not given the preloaded libraries the environments get, so declare what the picture needs, as a standalone document would:

```tikz libraries="arrows.meta,positioning"
\node[draw,circle,fill=blue!15] (a) at (0,0) {$a$};
\draw[-{Stealth[length=3mm]},thick] (a) -- ++(2.4,0) node[draw,circle] {$b$};
```

The attribute tail after the language is Clew's; TikZJax has no equivalent, so a fence that must stay readable in Obsidian should put its \usetikzlibrary lines in the body instead. Unlike the environments, a bare fence body without a tikzpicture is wrapped in one for you.

The exceptions are the packages that draw a picture of their own. A body that begins with \begin{tikzcd}, \begin{circuitikz}, \chemfig or \schemestart is typeset as it stands, because inside a second tikzpicture such a drawing collapses to its edge or vanishes. The package is still yours to name — without packages= the figure fails in its place with Environment circuitikz undefined:

```tikz packages="circuitikz"
\begin{circuitikz}
\draw (0,0) to[battery1, l=$V$] (0,2) to[R, l=$R$] (3,2)
            to[C, l=$C$] (3,0) -- (0,0);
\end{circuitikz}
```

A generous set of TikZ libraries is preloaded — positioning, shapes, calc, fit, matrix, trees, graphs, arrows.meta, the decorations families, intersections, patterns, backgrounds, calligraphy, and more — so typical figures need no preamble of their own. Every one of them is in the bundle: a \usetikzlibrary that cannot be found takes the whole figure down, so the packaging step refuses to ship a build whose bundles are missing any of them.

MetaPost

MetaPost, the drawing sibling of TeX's METAFONT, is available the same way:

@begin(metapost)
beginfig(1);
path tri; tri := (0,0)--(70,45)--(140,0)--cycle;
fill tri withcolor (0.55,0.5,0.8);
draw tri withpen pencircle scaled 1.2;
endfig;
end.
@end(metapost)

The source is run by MetaPost itself — version 2.11, the same program as the command line's mpost — straight to SVG. A file with several beginfig blocks produces several images, one after another; and a bare body of drawing commands, without the beginfig/end scaffolding, is wrapped into a compilable program for you. Labels written as btex … etex are typeset by real TeX: MetaPost normally launches TeX as a subprocess for those, which a browser cannot do, so the labels are collected and typeset in a single batched run instead — a figure with forty labels costs one, and an unchanged figure none.

Unlike TikZ there is no ::: spelling — @begin(metapost) is one of the two forms. The other is Clew's own fence, the counterpart of the TikZ one (Obsidian has no MetaPost convention to be compatible with):

```metapost
z1 = (0,0); z2 = (60,34); z3 = (120,0);
z4 = 0.5[z1,z3];                 % a point solved, not placed
draw z1 .. z2 .. z3 withpen pencircle scaled 1.2;
draw z2 -- z4 dashed evenly;
dotlabel.bot(btex $z_4$ etex, z4);
```

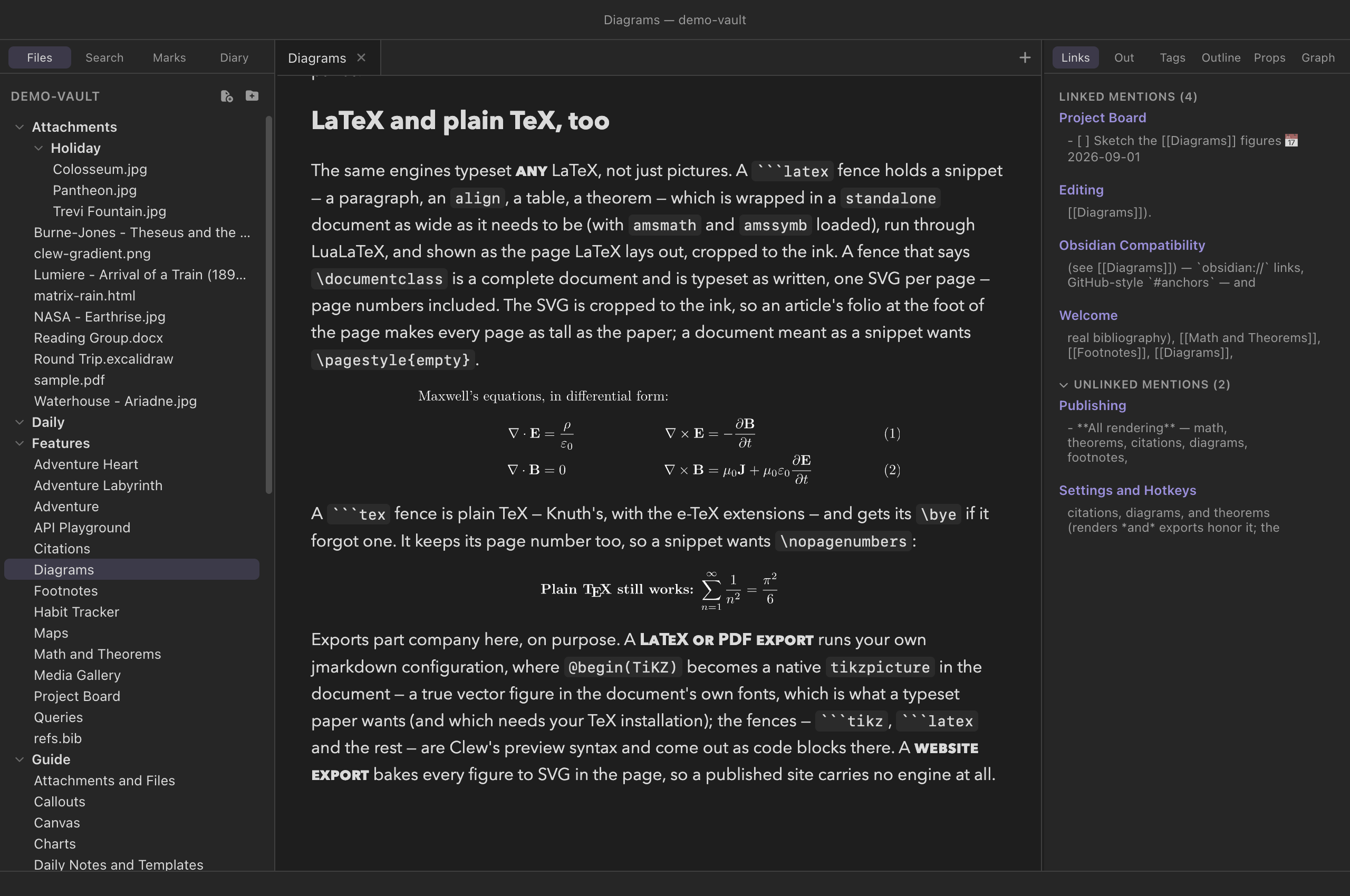

LaTeX and plain TeX

The engines are a real LaTeX, so they can typeset more than pictures. A ```latex fence holds a snippet — a paragraph, an align, a table, a theorem, anything that goes between \begin{document} and \end{document} — and Clew wraps it in a standalone document whose page is as wide as the content needs (the class's varwidth option, so a long paragraph wraps at a normal line width and a short formula gets a page its own size), loads amsmath and amssymb, typesets it with LuaLaTeX, and shows the result cropped to the ink. A fence that says \documentclass is a complete document and is typeset exactly as written, one SVG per page, the pages stacked — page numbers included, since a document that wants its pages as pages must get them. That has one consequence worth knowing before it looks like a bug: each SVG is cropped to the ink, and an article's folio sits at the foot of the page, so a nine-line document with the default page style comes out as tall as the paper — the text at the top, the page number at the bottom, and the note's next paragraph below all that empty space. A document meant as a snippet wants \pagestyle{empty} in its preamble (and \thispagestyle{empty} after \maketitle, which puts a folio back on the title page).

```latex
The quadratic formula, for reference:
\begin{align}
  x &= \frac{-b \pm \sqrt{b^2 - 4ac}}{2a}
\end{align}
```

A ```tex fence is plain TeX — Knuth's, with the e-TeX extensions — and gets its \bye if it forgot one. Like a LaTeX document it keeps its page number, which plain TeX sets at the foot of the page: a one-line snippet without \nopagenumbers comes out as tall as its page. A ```tex body that turns out to say \documentclass is treated as the LaTeX it is rather than failing on an undefined command. The packages=, preamble= and border= attributes below apply to a wrapped ```latex snippet the way they apply to a TikZ body; on a complete document they mean nothing and are ignored.

```tex
\nopagenumbers
\centerline{\bf Plain \TeX, $\sqrt{2}$ and all.}
```

LuaTeX is the engine for both fences — LuaLaTeX for ```latex, plain LuaTeX for ```tex — which means the first such snippet on a machine fetches LuaTeX (about 12 MB, once) and costs a little more per run than pdfTeX: a short snippet is a quarter of a second against pdfTeX's eighth. engine=latex on a ```latex fence asks for pdfTeX instead, and engine=plain on a ```tex fence for the e-TeX format.

In the note's own typeface

A figure's text is Latin Modern, TeX's own face, and for a diagram that is usually right. When it is not — a labelled picture that should read as part of the prose around it, a paragraph typeset for its layout rather than for TeX's look — font=note on the opening line sets the figure in the face the note itself is read in:

```tikz font=note
\node[draw,rounded corners] (a) at (0,0) {a labelled node};
\node[draw,rounded corners] (b) at (4,0) {in the note's face};
\draw[->,thick] (a) -- node[above] {\textit{as the prose}} (b);
```

```latex font=note
A paragraph in the note's face: regular, \textbf{bold}, \textit{italic}
--- with maths, $e^{i\pi} + 1 = 0$, still in Latin Modern.
```

Three things happen behind that word. The figure moves to LuaTeX, the one engine here that loads OpenType fonts, and its preamble gains a fontspec block naming the face's files. The face is the one your platform gave the app — Avenir Next on a Mac, Segoe UI on Windows, Cantarell where GNOME has its static build installed — read from the system's own font folder when Clew starts, one file per style (regular, bold, italic, bold italic), never shipped, and handed to the engine as bytes. And the SVG comes out as text: rather than tracing each glyph as an outline, dvisvgm embeds a subset of the same font file and emits real text runs, so the figure is drawn by the browser's own text renderer in the same face as the paragraph above it — selectable, and crisp at any size. Mathematics stays in Latin Modern, as it should; font=note is about the words.

It works on ```tikz, on ```latex, on :::TiKZ and the @begin(TiKZ) environment, on a complete document (the block goes in after its \documentclass), and on ```tex. Plain TeX has no fontspec, so there the face is loaded the plain way — luaotfload's own \font lines — and put where plain TeX keeps its fonts: {\bf …} and {\it …} switch to the bold and italic faces, -- and --- still make their dashes, and mathematics stays in Computer Modern. MetaPost figures ignore it — their labels are set by the TeX named in tex=.

A complete document that loads fontspec itself is recognised too and gets the same bundle and the same font files; name them as Clew does, NoteFont-Regular.ttf, NoteFont-Bold.ttf, NoteFont-Italic.ttf and NoteFont-BoldItalic.ttf, with Path=./, and add fonts=woff2 on the fence for text rather than outlines. Any face can be asked for by file name that way, but only those four files are there to find: luaotfload's font database knows the bundled fonts alone, so a system face cannot be named by family. To have a font=note figure drawn as outlines after all, add fonts=paths beside it.

Fragments: preamble text by name

A note's figures usually want the same preamble — the macros you write maths with, a colour or two, a package the pictures share. Rather than copy that block into every fence, write it once in Settings → TeX fragments, give it a name, and ask for it by name on a figure's opening line:

```latex clew-fragments='math macros'
$\R \subseteq \C$ for every $\R$ in sight.
```

```tikz clew-fragments='math macros, colours'
\fill[accent] (0,0) circle (0.4) node[right=6pt] {$\R$};
```

Names are separated by commas and inserted in the order you write them, so a fragment may build on one listed before it. A name is matched loosely — Math Macros and math macros are the same fragment — because you type it in two places and neither should have to be exact about capitals or spaces.

The text always lands in the figure's preamble, though where that is depends on the block: for a snippet, after the \documentclass Clew wraps it in and after the packages Clew adds; for a complete document, one that carries its own \documentclass, straight after that line; for a plain ```tex block, which has no preamble at all, at the top of the source. A preamble= written on the block itself still comes last of all, so a figure can always override a fragment it named, and so can anything the fragment itself defines twice — TeX's own rule, that the last definition wins, is the one to think with here.

A fragment can carry the packages it needs, and often has to: Clew wraps a ```latex snippet in a standalone document with amsmath and amssymb already loaded, but a ```tikz picture is wrapped by the figure library instead and gets neither. A fragment shared by both wants its own \usepackage line — otherwise a macro that expands to \mathbb{R} works in the snippet and is an undefined control sequence in the picture, which is a puzzling way to meet the difference.

Two places to keep them

The settings section has two lists, and the difference between them is what happens when the vault goes somewhere else:

A vault fragment shadows a global one of the same name. That is the arrangement plugins use, for the same reason: the vault is the more specific place, and a vault that carries its own macros should render by them wherever it is opened. The row says so in the settings section when it happens, so a name you forgot you had used twice is not a mystery.

Editing a fragment re-typesets every figure that uses it, in every note open at the time — the figures that do not use it are not touched, because a figure is identified by the text it was given rather than by the name it asked by. Renaming one therefore typesets nothing at all; what it does do is leave any figure still asking for the old name saying so, in place of itself, until you write the new name there.

Fragments are part of how Clew displays a figure, like show= and the typesetting itself: a LaTeX or PDF export runs your own TeX with your own configuration and knows nothing about them, so a note meant for that route wants its preamble written where TeX will find it. A website export does use them — the pages it bakes are the pages you were reading.

Showing the source instead

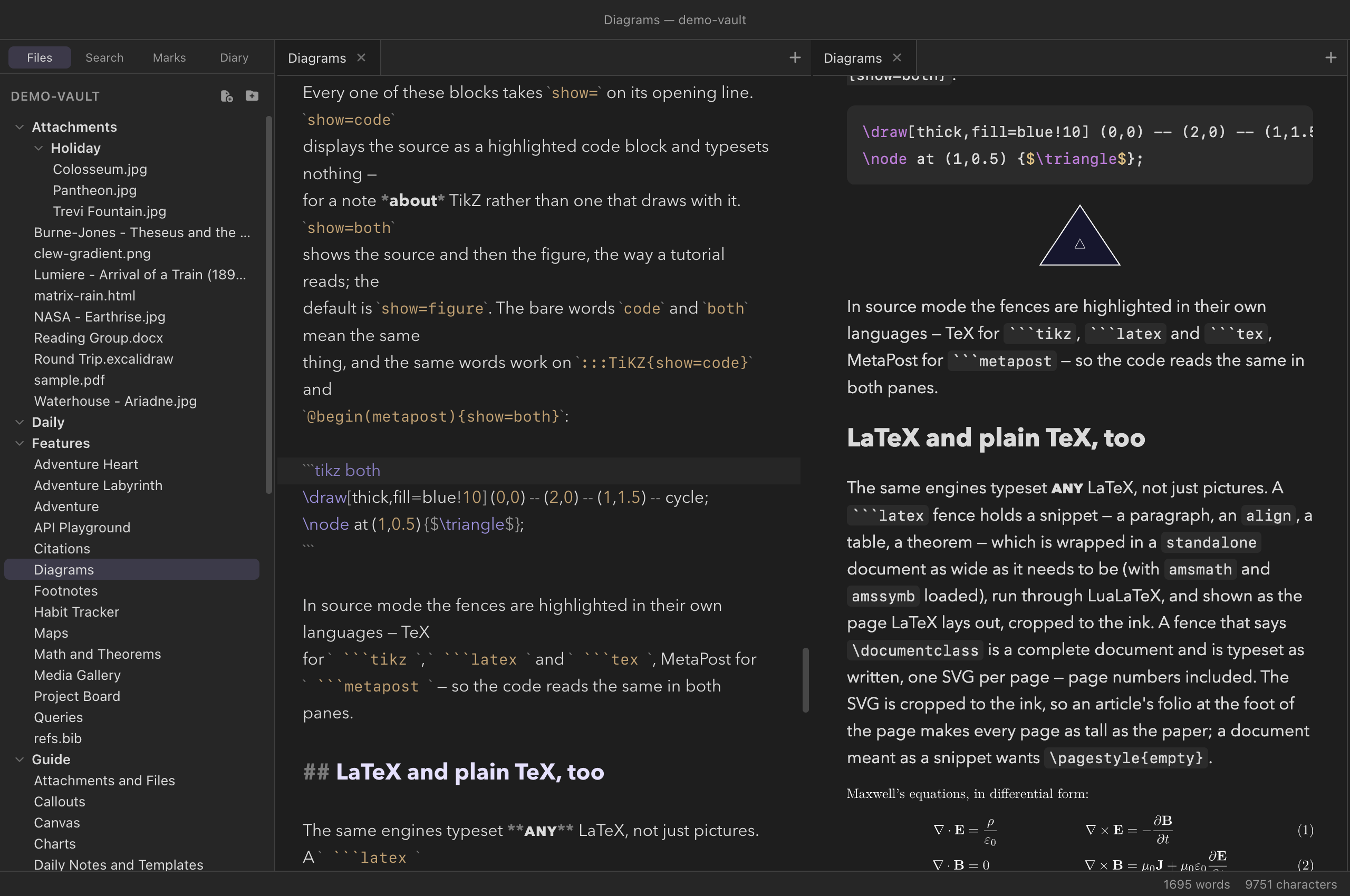

Every block on this page — the four fences, :::TiKZ, and the two environments — takes show= on its opening line:

The bare words code, both and figure mean the same as their show= forms, so ```latex code reads naturally on a line about LaTeX code. On the environments and the directive the attribute goes in the usual braces: @begin(metapost){show=both}, :::TiKZ{show=code}. A code block shown this way is an ordinary fenced code block to the rest of Clew — highlighted by highlight.js in the reading pane, with its line stamped for scroll sync — and MetaPost, which highlight.js does not know, is given a grammar of Clew's own so it does not come out as plain text.

In the source pane the same fences are highlighted with their own grammars — TeX for ```tikz, ```latex and ```tex, MetaPost for ```metapost — so a figure's code reads the same on both sides of a split; see Dialect-aware highlighting.

Typesetting and caching

Typesetting on every keystroke would be wasteful, so a rendered figure is cached by its content. The source and its attributes are hashed, and the resulting SVG is kept in the preview's own store, keyed by that hash. Edit the prose around a figure and the picture is not touched at all; edit the figure and only that one is typeset again. Close the app, reopen it a week later, and the figures come back from the cache without an engine starting.

Nothing goes into your vault. Earlier versions of Clew shelled out to your TeX installation and cached the SVG in TiKZ/ and MetaPost/ folders beside the note; the preview no longer writes or reads those. If a vault of yours has them, they are ordinary folders of SVG files and can be deleted — though a jmarkdown run on the command line, or a single-note HTML export (below), will still use them.

Attributes tune both the figure and its embedding, written in the environment's attribute block or after the fence's language. The first two are the presentation; the rest are handed to the engine:

@begin(TiKZ){scale=1.5}
…
@end(TiKZ)

```tikz libraries="arrows.meta" border=4pt
…
```

The old embed and empty-cache attributes no longer mean anything — the SVG is always inline, and a cache keyed by content is never stale — so they are accepted and ignored rather than reported as errors in a note you wrote years ago.

What is in the box, and what is not

The engines ship with Clew: MetaPost 2.11, pdfTeX, LuaTeX and dvisvgm, all from TeX Live 2025 and compiled to WebAssembly, together with the fonts and macro packages they read — Computer Modern, Latin Modern, the 35 PostScript fonts, PGF/TikZ with every library it ships, pgfplots, tikz-cd, circuitikz, chemfig, tikz-3dplot, amsmath, xcolor, standalone, and more. There is nothing to install and nothing on your PATH to find, on any of the three platforms; a figure renders the same on a machine that has never seen TeX. LuaTeX is the one piece loaded on demand, when a figure asks for graph drawing or \directlua, or a note holds a ```latex or ```tex fence.

What that leaves out is worth knowing, because it is the difference between this and a full local installation:

• Fonts: the bundled ones, plus the note's. Text in figures is set in the Type 1 faces above, and a figure can ask for the note's own face with font=note, or load fontspec in a complete document. What it cannot do is name an arbitrary installed font by family: only the note's face is handed over, as files. unicode-math's maths font is not bundled.
• The bundled packages, not all of CTAN. A figure needing something outside the bundle fails with TeX's own "file not found" in its error box rather than silently dropping it.
• No \write18, no PDF output, no Ghostscript. A figure is typeset and converted to SVG; nothing shells out.

When a figure fails for the ordinary reason — a typo in the picture — its place in the note is taken by an error box carrying TeX's own diagnostics, with the line number in your source and the log beneath it. Add show-console to keep that log visible even when the figure succeeds.

Diagrams in export and publishing

In LaTeX and PDF export, TikZ figures are not embedded as images at all — the tikzpicture source passes through natively, so the print figure is drawn by the same engine as the rest of the document, in the document's own fonts. That path is unchanged, and it is the one place a TeX installation still matters: an export runs your own jmarkdown configuration and your own lualatex, mpost and dvisvgm — which is also why a single note exported to HTML still uses the TiKZ/ and MetaPost/ folders beside it, and why the fences — ```tikz, ```metapost, ```latex and ```tex, which jmarkdown itself does not know — export to LaTeX as code blocks. (show= is likewise the preview's: an export of a @begin(TiKZ){show=code} block still draws the picture.)

The reading-view PDF waits for every figure and prints what the screen shows. When a whole vault is published as a website, each figure is typeset once during the export and the SVG is written into the page, so the published site carries no engine at all — a visitor loads a few kilobytes of vector graphics instead of 74 MB of TeX, and needs no TeX on the server either.
